FEATURES:

This machine is Multi-lane liquid&paste automatic filling and packaging machine, Its advantages: wide application, simple operation, easy maintenance . This machine is used in multi-lane of 4-side packing.The suggestion that you can apply it in Multi-lane making when the width X lane amounts + bilateral cutting width =less than 500mm

APPLICATION:

This machine is broadly used in packaging liquid soup,cosmetics,cleansing liquid and mayonnaie,which require high filling precision.

SPECIFICATIONS:

Filling Product	Liquid & Paste
Pouch Pattern	4-side seal
Pouch Height Range	2divisions 100-200mm 3divisions 80-150mm 4divisions 55-100mm 5divisions 40-60mm According to the width of horizontal sealing pouch height range is different.
Pouch Width	480mm(MAX)+Both sides of the cutting part
Packaging Capacity	20-150 pouches per minute(1-lane)×lane amount (depending on pouch height,film composition,product property,etc)
Filling Capacity	1-50ml (depending on product property and filling device to be used)
Applicable Film Width	Maximum 960mm+
Maximum Film Roll Dia	￠400mm
Power Consumption	3-phase 380V 16kw
Air Consumption	300L/min（0.4-0.5Mpa）
Machine Dimensions	1650mm(L)×2550mm(W)×2400mm(H)
Machine Weight	Approx.2300kg

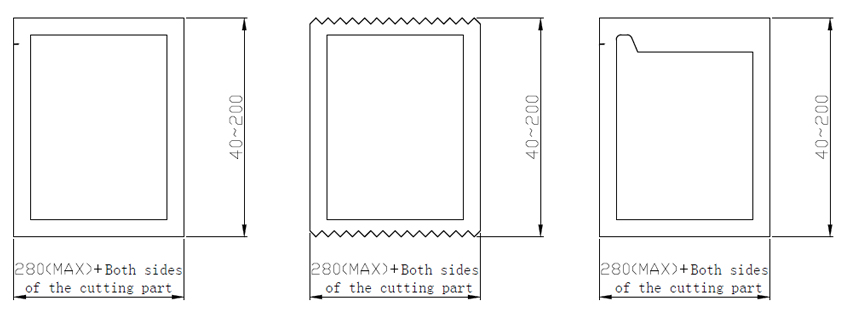

PACKAGING STYLE:

SKL-5000 AUTOMATIC MULTI-LANE LIQOUID & PASTE FILLING &PACKAGING MACHINE
